Product Overview

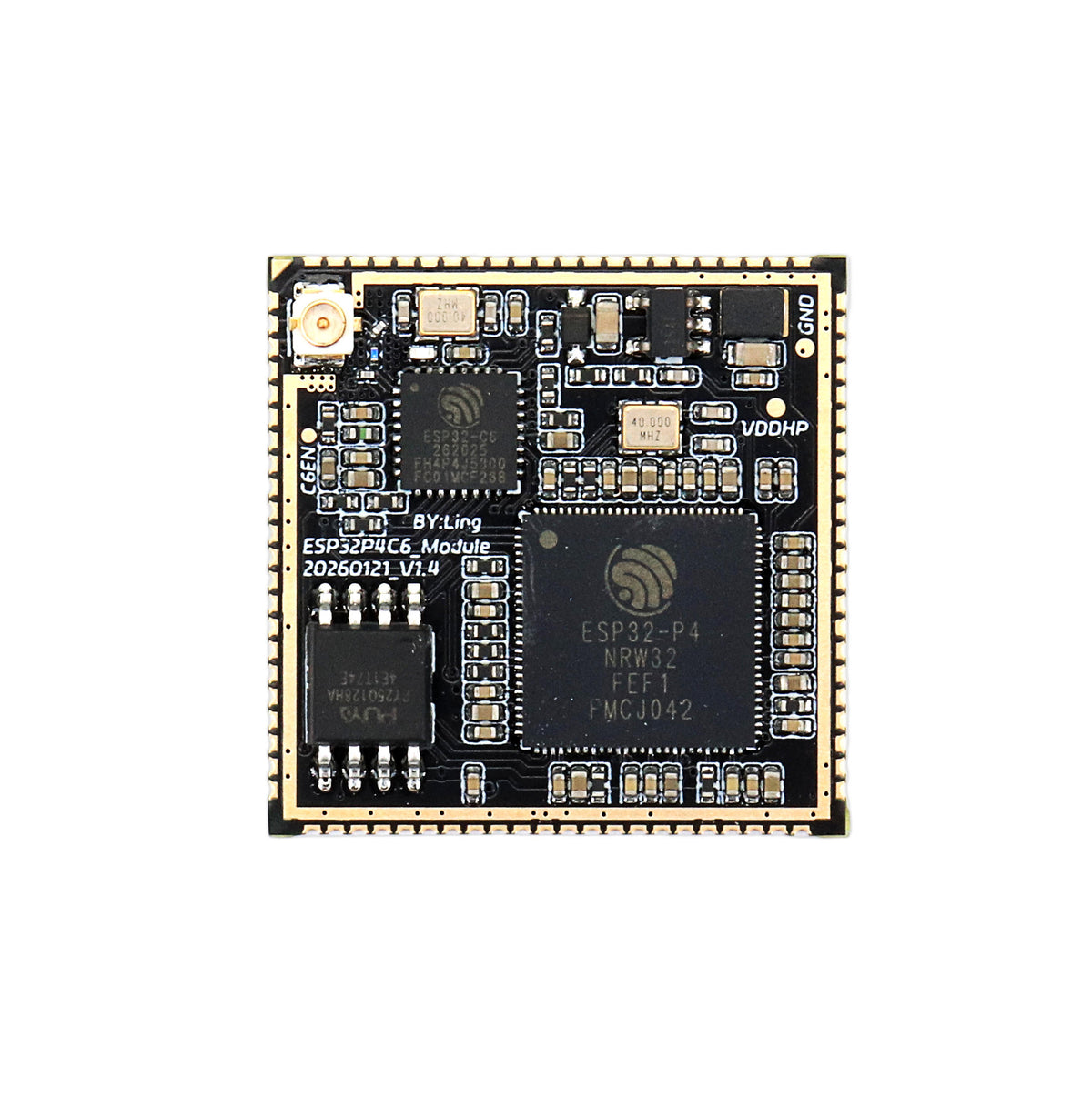

The ESP32-P4C6 Core Board is a compact high-performance embedded computing module built around Espressif's ESP32-P4 processor and integrated ESP32-C6 wireless connectivity.

Designed for advanced HMI systems, smart home devices, industrial automation, camera video streaming, consumer electronics, robotics and other embedded applications, the module combines a dual-core 360 MHz RISC-V processor with 16 MB Flash, 32 MB PSRAM, Wi-Fi 6, Bluetooth 5.2 and a wide range of multimedia and peripheral interfaces.

Its compact 25 × 25 mm stamp-hole form factor makes it suitable for integration into custom electronic products where high computing performance, video processing and wireless connectivity are required.

Key Features

• ESP32-P4 main processor
• Dual-core 32-bit RISC-V high-performance processor
• Up to 360 MHz high-performance clock speed
• Integrated low-power processing system up to 40 MHz
• 16 MB Flash
• 32 MB PSRAM
• Wi-Fi 6 (802.11ax)
• Bluetooth 5.2
• 55 GPIO
• MIPI CSI interface for camera integration
• MIPI DSI interface for display integration
• High-Speed USB 2.0 OTG
• Full-Speed USB 2.0 OTG
• 100 Mbps Ethernet MAC
• JPEG encoder/decoder
• H.264 video encoder

• Image Signal Processor (ISP)

• Pixel Processing Accelerator (PPA)

• Multiple SPI, UART, I2C, I2S and SDIO interfaces

• Compact 25 × 25 mm core board

• Full technical documentation available

Technical Specifications

• Main Processor: ESP32-P4

• Processor Architecture: 32-bit dual-core RISC-V

• High-Performance Clock Speed: Up to 360 MHz

• Low-Power Clock Speed: Up to 40 MHz

Memory:

• 128 KB HP ROM
• 16 KB LP ROM

• 768 KB high-performance L2 memory

• 32 KB low-power SRAM

• 16 MB Flash

• 32 MB PSRAM

Wireless Connectivity:

• Wi-Fi 6 (802.11ax)

• Bluetooth 5.2

Peripheral Interfaces:

• 55 × GPIO

• 2 × SPI

• 1 × LP SPI

• 5 × UART

• 1 × LP UART

• 1 × I3C

• 2 × I2C

• 1 × LP I2C

• 3 × I2S

• 1 × LP I2S

• 1 × USB JTAG

• 1 × SDIO

• 1 × LED PWM

• 2 × MCPWM
• 3 × TWAI controllers

• 1 × High-Speed USB 2.0 OTG

• 1 × Full-Speed USB 2.0 OTG

• 1 × 100 Mbps Ethernet MAC

• 1 × MIPI CSI-2

• 1 × MIPI DSI

• 1 × Parallel I/O controller

• 2 × 12-bit multi-channel ADC

• Temperature sensor

• Touch sensor

• Analogue voltage comparator

• Undervoltage monitoring

Image & Video Processing:

• JPEG encoder/decoder

• Pixel Processing Accelerator

• Image Signal Processor

• H.264 video encoder

Power Supply: 3.0–3.6 V
Typical Voltage: 3.3 V
Typical External Supply Current: 1 A
Operating Temperature: -40°C to +85°C
Dimensions: 25 × 25 mm
Moisture Sensitivity Level: MSL 3

Applications Ideal for:

• Smart home systems

• Industrial automation

• Consumer electronics

• HMI applications

• Electronic robotics

• Camera video streaming

• USB devices

• Smart displays

• AI-enabled embedded products

• Custom IoT product development

• Available Variants

• ESP32-P4C6-N16R32 Core Board

• ESP32-P4C6-N16R16 Core Board

• 2.4 GHz Antenna
